USACE Baltimore District Electrical Panel Inventory
Supporting Facility Asset Management

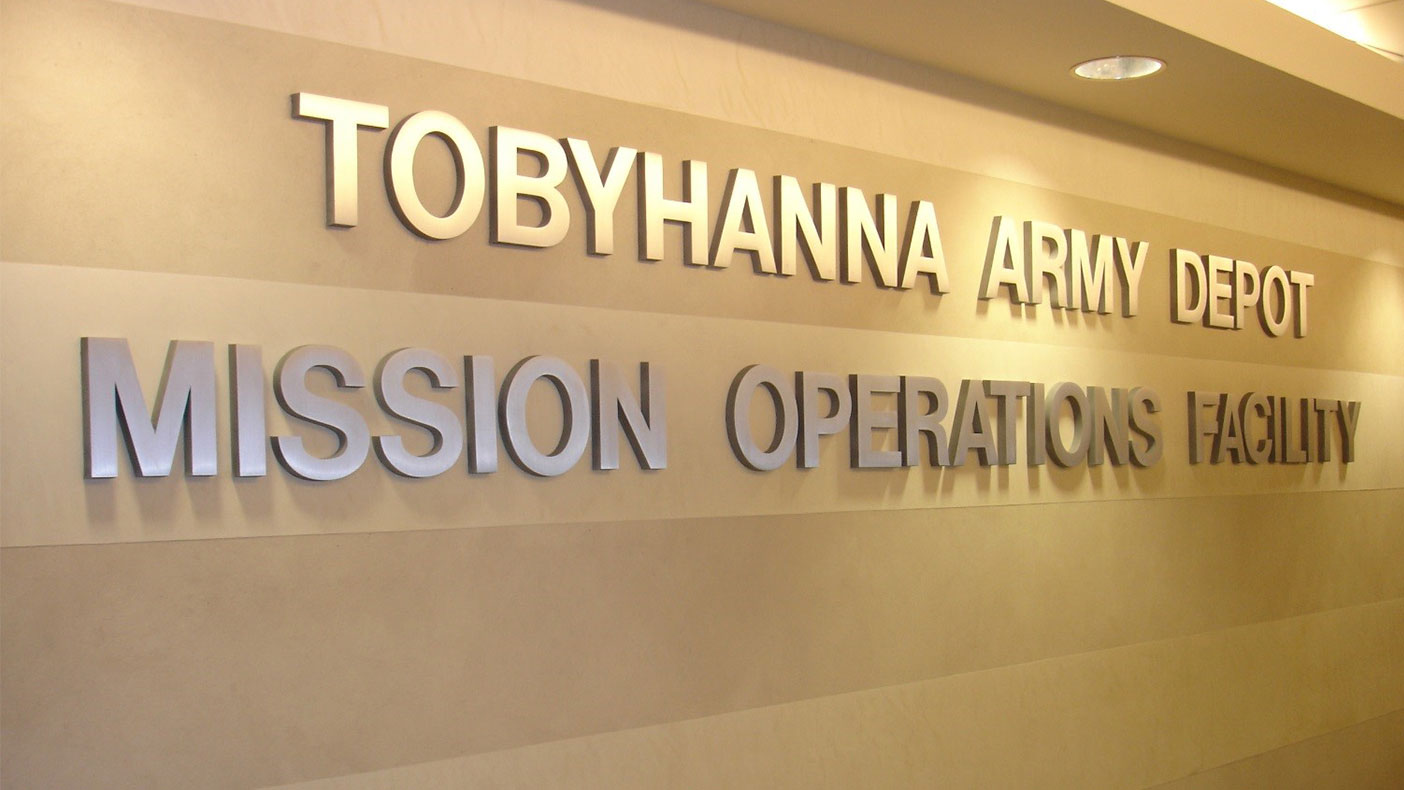

We performed a comprehensive inventory of the facilities electrical panels in order to more accurately understand the current and potential capacity of the electrical system at Tobyhanna Army Depot.

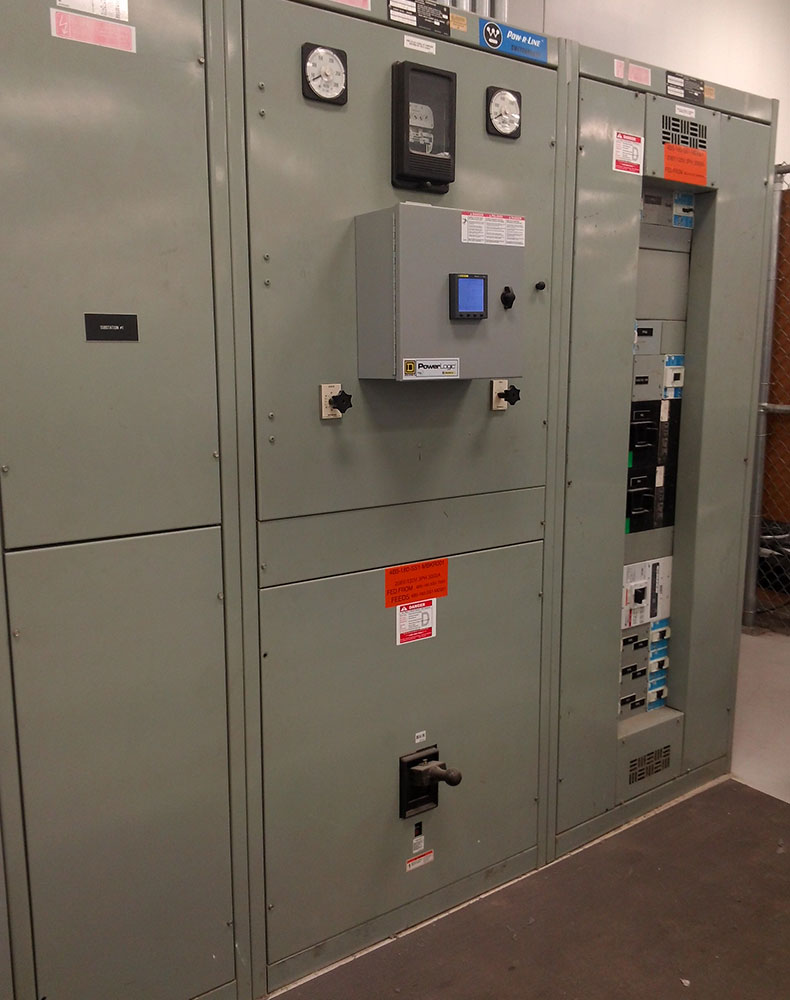

We collected data for more than 3,000 electrical panels, including type, dimensions, manufacturer name, voltage, amperage, and number of circuit breakers.
- Client
- Buchart Horn/Dewberry Joint Venture LLC
- Owner
- USACE Baltimore District
- Location
- Tobyhanna Army Depot, PA
- Markets
- Community Facilities, Federal
- Cost
- $2.5 million
- Completed
- 2014
- Region
- Northeast
The U.S. Army Corps of Engineers (USACE) needed to more effectively manage its facility and electrical system operations, management, and safety requirements at the Tobyhanna Army Depot. As part of a joint venture with Buchart Horn, we provided facility asset management support and completed a comprehensive inventory of the facilities’ more than 3,000 electrical panels. This data was made accessible on mobile devices to enable real-time decision-making.
Since the data collection was done indoors, we were not able to use GPS to determine panel locations. Instead, they were measured from known indoor physical structures using measuring tapes and laser range finders then cross-referenced with highly accurate as-built CAD drawings of the buildings. We used mobile tablets and a customized data collection application to enable our geospatial analysts, subcontracted electricians, and Tobyhanna engineers to collect and update the data and photographs for the electrical panels and seamlessly incorporate the data into an ArcGIS v.10 geodatabase.
3,000+
electrical panels inventoried
